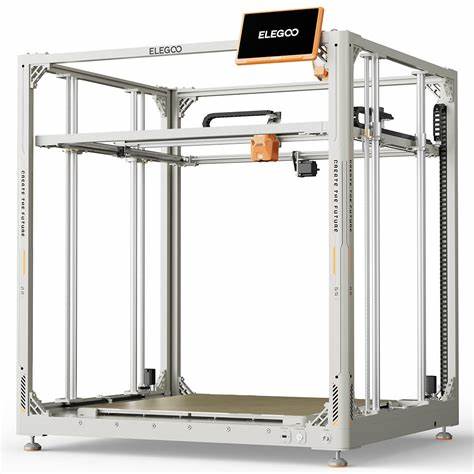

OrangeStorm Giga

Description

DescriptionProduct information & technical detailsItem no.:ELG-50.201.019300Manufacturer:ElegooContent:1 setProduct type:3D PrintersNozzle shape:OthersAssembly:Assembly kitPrinting Technology:FFF – FDM – LPDPrinter Display:Touch DisplaySupported operating systems:Windows (7+), Mac OS X (10.7+)Extruder type:Direct Drive ExtruderNumber of extruders:SingleInterfaces:USB – Connection, WIFI – WLAN, LANSupported Formats (Slicer):STL, OBJHeated build platform:YesHeated chamber:NoBuild volume:800 x 800 x 1000 mmDescriptionTheElegoo OrangeStorm Gigais no ordinary 3D printer. With its huge build volume of 800 x 800 x 1000 mm, it exceeds all dimensions that one is used to from home 3D printers. This colossus forms a bridge between hobby and professional use, and opens up completely new possibilities for ambitious makers.Features at a glance:Robust construction in industrial quality,Build volume of 800 x 800 x 1000 mm,Heated bed with 4 independent PEI high temperature platforms,Automatic detection of the platform used and its individual heating,64-bit quad-core high-performance processor for high-speed printing of up to 300 mm/s,Optional multi-nozzle printing with the possibility of attaching three additional print heads for multi-colour printing,Improved nozzle design for a printing temperature of max. 300 °C,Automatic PID calibration function for precise control of the nozzle temperature,Automatic one-click levelling and a contactless high-precision sensor ensure the flatness of the platforms,Special cable rails for durable cables,Filament detection and power loss recovery,etc.A giant among FDM printersTheOrangeStorm Gigaimpresses with its gigantic build volume of an incredible 800 x 800 x 1000 mm. The industrial-grade 3D printer offers almost unlimited possibilities for carrying out huge projects without the need to print large-format models in several passes.Robust constructionThe FDM printer is designed for demanding use and impresses with its sturdy construction. The giant has an elegant and durable integrated housing; the X and Y axes are linear guides that effectively improve printing stability and extend the service life. The Z-axis has a robust guide rod that ensures smooth operation and precise levelling. The printer itself is equipped with round carbon bases with anti-slip rubber pads.Bed with four independently heated platformsTheOrangeStorm Giga‘s heatbed consists of four independent magnetic PEI build plates. These high-temperature platforms (each measuring 410 x 410 mm) are designed for a maximum temperature of 90 °C and can be heated simultaneously. They reach a temperature of 90 °C over the entire surface within approximately 17 minutes (at an ambient temperature of 25 °C).Special sensors enable the platform on which the model is located to be automatically detected in order to heat it. However, the individual build plates can also be heated and controlled manually and independently of one another as required.Rapid speedsThanks to a 64-bit quad-core high-performance processor (SOC RK3328) with a clock speed of 1.5 GHz, the gigantic printer achieves a printing speed 6 times higher than other 3D printers of this size:Max. printing speed of 300 mm/s,Recommended printing speed of 150 mm/s.Multi-nozzle printingThe printer allows you to attach three additional print heads to the X-axis to print four models at the same time. In addition, you can use different coloured filaments of the same material to bring your printed objects to life with colour.Improved nozzle designThe printer is equipped with an optimised nozzle designed for temperatures of up to 300 °C. The high-temperature nozzle made of chrome-zirconium-copper has a proximal double gear extrusion structure and a titanium alloy heat pipe, and has been upgraded with a 60 watt ceramic heating pad.Powerful double-sided fansTheOrangeStorm Gigais equipped with robust double-sided cooling fans: 2 x 5015 ball fans, 1 x 4010 ball axial fan. These have an intelligent control function that automatically turns them off after the printing process is completed to save energy, reduce noise and extend the service life. This can achieve more uniform extrusion and higher printing precision.By integrating an automatic PID calibration function, the nozzle temperature can be precisely controlled. To generate even better print quality, a built-in acceleration sensor automatically calibrates the parameters for resonance compensation.Additional features:Automatic one-click levelling and a non-contact high-precision sensor collect platform data at 121 points to ensure that it is level,The printer’s cables are stored in special cable rails to protect them from external influences such as dust or contamination as well as from wear and tear and breakage,Automatic filament detection and power loss recovery,7 inch HD capacitive touchscreen,User-friendly knob design,Practical spool holder made of sheet steel for spools up to 5 kg.Included in delivery:1 x OrangeStorm Gige 3D printer1 x print head1 x touch screen2 x levelling plate1 x Spool Holder1 x Spool Holder Arm2 x Filament Breakage Detectors2 x clips for cable rails on the Z-axis2 x End Stop for the Z-axis1 x Filament Guide Assembly1 x freestanding spool holder for filaments up to 5 kg1 x power cable1 x leveling card1 x lubricating grease8 x corner brackets for profilesToolsFastenersManualTechnical specifications:Device size1224x1164x1425mmGross weight145kgBuild volume800x800x1000mmSize of the printing platform820 x 820 (4 independent 410 x 410 mm PEI plates)Max. printing temperature300°CMax. heating bed temperature100 °C (at an ambient temperature of 25 °C)Max. print speed300mm/sMax. acceleration5000mm/s²Nozzle0.6 mm (included)→optional 0.4mm, 0.8mm, 1.0mmInterfacesUSB, LAN, WiFiSlicer formatsSTL, OBJFilament compatibilityPLA, PETG, TPU, NylonFeaturesFilament DetectionResume PrintingVoltage100-120V220-240VUI languagesEnglish, French, German, Russian, Italian, Spanish, Japanese, Mandarin
