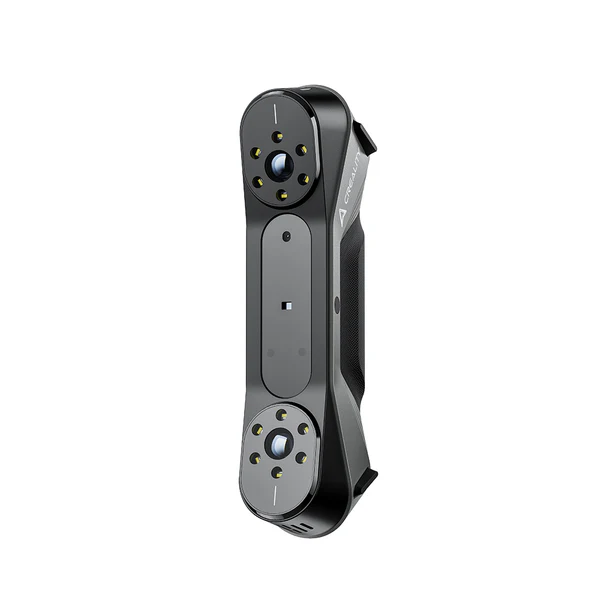

Creality – CR-Scan Raptor

Description

DescriptionDescriptionCreality 3D Scanner CR-Scan Raptor 3D Printing Handheld Scan Machine 0.02 mm Accuracy 60fps Scanning Speed Hybrid Blue Laser & NIRScanning Mode: Blue Light(Blue 7-line laser) / NIR(infrared binocular structured light)>>Blue Light(Blue 7-line laser) Mode:Accuracy: Up to 0.02mm @ 100mm [1]3D Resolution: 0.02-2mmScanning Speed: Up to 60fpsMin. scanvolume: 5mm x 5mm x 5mmSingle Capture Range: 270mmx170mm@300mmWorking distance: 150mm-400mmColor Mapping: YesAlignment mode: Marker>>NIR(infrared binocular structured light) Mode:Accuracy：Up to 0.1mm3D Resolution：0.1-2mmScanning Speed：Up to 20fpsSingle Capture Range：930mmx580mm@1000mmWorking distance: 170mm-1000mmColor Mapping: YesAlignment mode: Marker / geometry / textureGeneral Parameters:3D imaging camera resolution: 1920×1200Color Supplemental Light: 12 white LEDsMarker Recognition Enhancement: 12 infrared LEDsLaser Safety: Class I (eye safe)Button: MechanicalIMU: YesOutput format: OBJ/STL/PLYInput Power: 12V 2AData interface: TypeC/USB3.0Device Dimensions: 215mmx50mmx74mmDevice Weight: 372gCalibration board: High-precision glass calibration boardWireless Scanning: Supported in conjunction with future wireless scanning accessoriesSystem Support：Windows/macOSOperating temperature：-10°C to 40°COperating humidity: 0-90%RHAccuracy is evaluated in laboratory conditions (measurement object is 100mm sphere pair) and actual results may be affected by operating environments such as temperature, vibration, and other factors.
